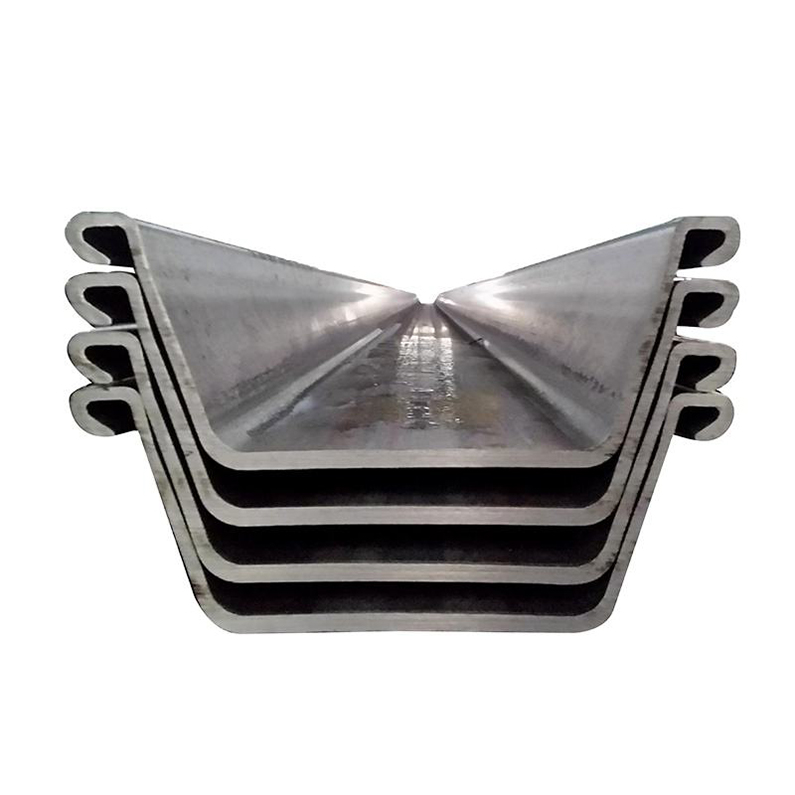

Hat Type Pile for construction
Contact person:Martin
Tel:+86 186 1561 8035
Email: martin@tgpxsteel.com
What’app:+86 186 1561 8035
Skype:+86 186 1561 8035
Add:Huitong Logistics Park,Liaocheng Development Zone, Shandong Province, China
CONTACT US

Product Description


Hat profile sheet piles are called Z’s because the single piles are shaped roughly like a horizontally stretched Z. Z profiles are continuous through the web providing full shear transmission between compression and tension faces of the wall.

Interlocks are located symmetrically on both sides as far away from the neutral axis as possible, providing efficient use of material and creating a positive influence on the section modulus. Z profiles are traditionally driven as double piles facilitating a greater wall coverage per pitch and drive.

J Steel provides Hot Rolled AZ sheet piles and Cold Formed OZ / PAZ sheet piles from ArcelorMittal mills in Europe and Asia.

The Hot Rolled AZ range of sheet piles is the most advanced in the world. ArcelorMittal introduced the AZ profile in 1990 and is committed to continuously improving the sections through ongoing, aggressive research. The AZ’s now cover the widest range of strengths representing the strongest, most efficient sheet piles in the industry.

The OZ / PAZ Cold Formed sheet piles are manufactured from a single length of steel coil providing a uniform thickness across the section, and the opportunity to produce lightweight piles as thin as 3mm thick.











Q1. Where is your factory ?

A1: Our company's processing center is located in Shandong, Jinan, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers' needs.

Q2. What are your company's main products ?
A2: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.

Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.

Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
